J58K hot forging screw press machine price for sale in Pakistan

The Screw Press belongs to closed die forging equipment. Die forgings are widely used in automobiles, railway vehicles, construction machinery, national defense, aviation, and other fields.
In the development stage of the screw Press, there are four main transmission forms: Friction Screw Press, Hydraulic Screw Press, Clutch Screw Press, and Electric Screw Press.

1. According to the forging method: warm forging, hot forging, cold forging of thin forgings, powder metallurgy forging, straightening processing, combined casting, and forging.
2. According to forging material: all steel including stainless steel, aluminum alloy, titanium, magnesium, brass, copper, etc.

With the change of product structure and the continuous improvement of quality, it is also faced with the huge pressure of environmental protection and rising labor costs. In order to improve the competitiveness of enterprises, advanced equipment and technology must be used. This provides a new opportunity for the development of Electric Screw Forging Presses. Electric Screw Forging press will be developed in a heavy and intelligent direction.

Why use forging to produce hooks?
Lifting hooks can be used for a variety of lifting, rigging, towing, pulling, and securing.
In the lifting and rigging industry, hooks are always used to transport components from one place to another. Therefore, the hook must be strong and able to withstand high weights.

Electric screw press is a type of press machine in which the ram is driven up and down by a screw,which have the advantages of small volume,short of transmission chain,easy operation.

Anyang Forging Press Company has designed complete forging “systems” that are based on the user’s technical requirements. Our goal is to create complete forging systems that deliver reliability, protect the environment, labor and energy efficiency are reliable, and above all, produce the highest quality forgings possible.

The electric screw press is a new type of forging equipment evolved by optimizing the transmission system on the basis of the principle of the friction press.

Electric power press is designed specially according to the requirements of refractory material pressed technology. It has light and heavy sequence blow and is an ideal device for pressing brick.

Electric screw press is not only a forging equipment with strong process applicability, but also an environmentally friendly and energy-saving precision forming equipment

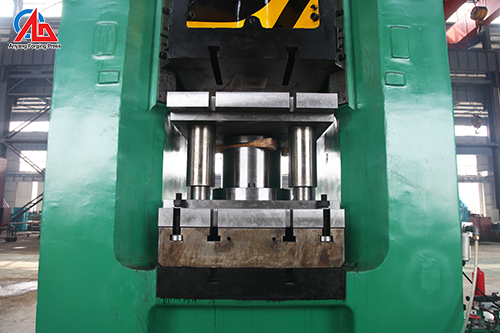

J58K Series Electric Screw Press/suitable for all kinds of precision forging, sizing, precision pressing, calibration and leveling, etc processes. The hitting energy can be accurately set, the stroke is short, and the energy is stable.

The electric screw press has good rigidity, high sliding guide precision and strong anti-eccentric load capability. It can be used for multi-station die forging. It is a new type of energy-saving and environmentally friendly press.

Electric screw presses are equipment used in the forging industry, which can be used not only for hot forging, but also for fine forging and finishing.

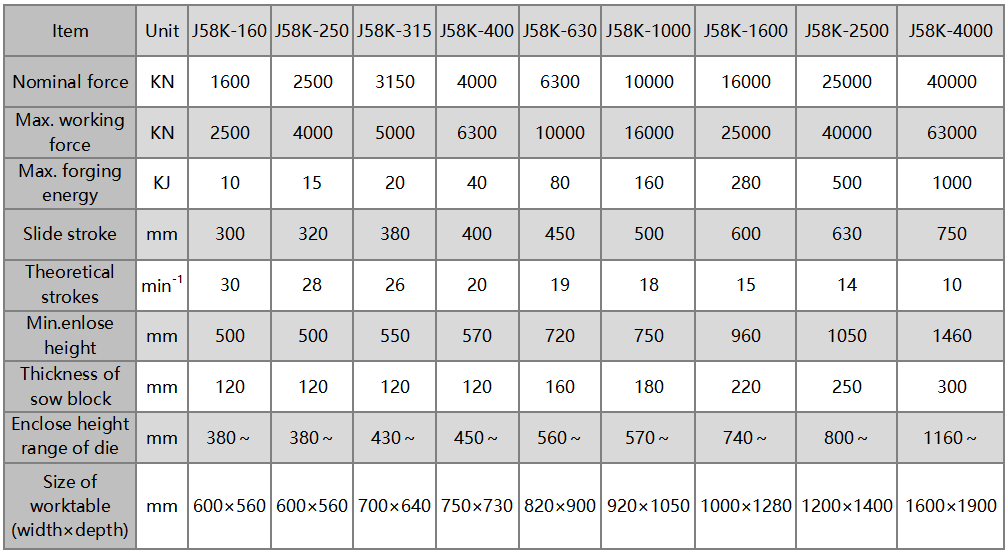

J58K series electric screw press / suitable for all kinds of precision forging, sizing, precision pressing, leveling and other processes.

This production line includes a 1000Kw induction furnace, a J58K-1600 CNC electric screw press, a 400t trimming press, a D51-800 ring rolling machine, and two KUKA robots. It is mainly used to manufacture petroleum pipes. Production technology, equipment, and molds are provided by Anyang Forging Press Numerical Control Equipment Co., Ltd, with a production line output of 30 pieces per hour.

The electric screw press has the advantages of simple structure, easy adjustment and maintenance, no bottom dead center of the slider, convenient mold design, and high precision of forgings.

The electric screw press can be used not only for hot forging, but also for precision forging and finishing; it is not only suitable for the pressure welding process of stainless steel double bottom pot, but also for precision forging of titanium alloy blades and other blades.

The J58K series electric screw press can adjust the striking energy according to the molding needs, reduce the mechanical stress and thermal stress of the mold, and prolong the life of the mold. Because of its low slider speed, it has unique advantages in forging of non-ferrous metals such as aluminum alloy and copper.

Electric screw press is a kind of forging equipment with strong technological applicability, taking into account the dual properties of forging hammer and press, and has the characteristics of simple structure, small volume, short transmission chain, convenient operation, safe operation and small maintenance workload.

The electric screw press is only lost in the blow molding process, not consumed in feeding, picking bricks, and cleaning the mold. Anyone can do it in such a short time with one key operation. Fully automatic digital simulation of human strike process

The sliding stroke of the electric screw press adopts the positioning form of long slider and long guide rail to achieve high precision and strong anti-overload and unbalanced load capacity.

Electric screw press is an energy-saving precision forging press equipment. No mechanical transmission, direct drive by servo motor, high transmission efficiency, low failure rate, fast motor speed, large torque, digital control of energy release, and can meet various process requirements for forging strikes.
