Pneumatic Forging Hammer Machine for Sale

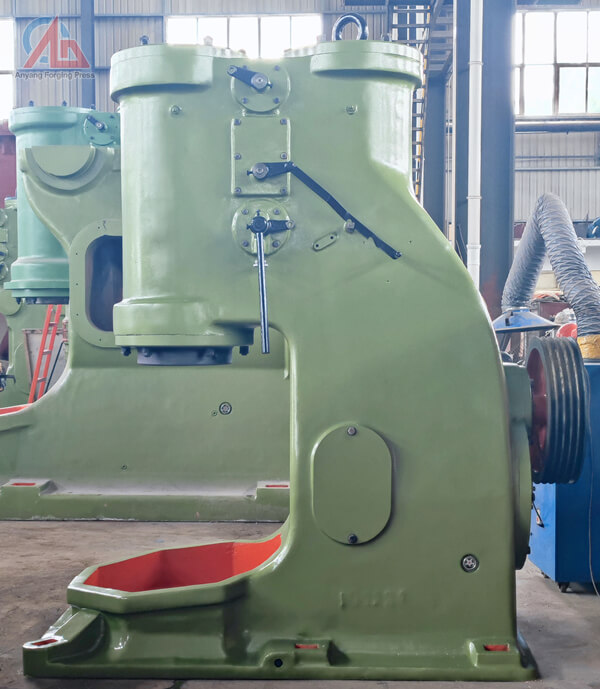

The C41 series pneumatic hammer is widely used for open die forging works, including drawing out, upsetting, punching, chiseling, forging welding, bending, and twisting. With bolster dies, it can also be used for open-type close forging.

Rated 4.6/5 based on 328 customer reviews
Share:
Content
Model Unit C41-150 C41-250 C41-400 C41-560 C41-750 C41-1000 C41-2000
Structure Two pieces Two pieces Two pieces Two pieces Two pieces Two pieces Two pieces
Weight of falling parts kg 150 250 400 560 750 1000 2000
Hitting energy kJ 2.5 5.6 9.5 13.7 19 27 54
Hitting frequency min-1 180 140 120 115 105 95 80
Height of working area mm 370 450 530 600 670 800 1000
Depth of throat mm 350 420 520 550 750 800 950
Working Piece Square mm 130×130 145×145 220×220 270×270 270×270 290×290 350×350
Round mm Φ145 Φ175 Φ240 Φ280 Φ300 Φ320 Φ400
Motor Model Y180M- Y180L- Y200L- Y280S- Y280M- Y315S- Y315L2-
4 4 4 6 6 6 6
Power Kw 18.5 22 30 45 55 75 132
Weight Include base kg 3260 5000 8000 9800 17000 20000 48000
Anvil block kg 1500 2500 4800 6720 9000 12000 24000
Outside size mm 2390 2639 2785 3464 3905 4020 5820
1085 1000 1100 1160 1370 1500 2140
2150 2540 2884 3157 3175 3652 4390

***************************************************************************************************************************************************************

We can provide 9-2000kg Power Forging Hammers / Air Forging Hammer / Pneumatic Forging Hammer.

If you are interested in it, pls contact me.
