China Ring Rolling Machine Manufacturers- Ring Rolling Machine for sale India

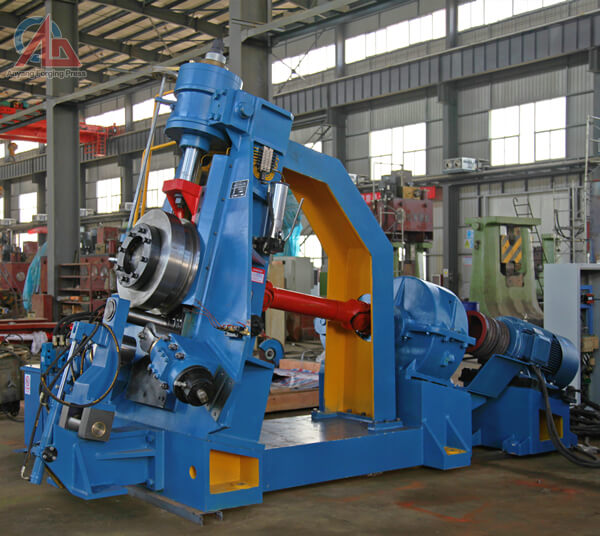

Anyang Forging Company, established in 1956, is a high-tech enterprise specializing in the research, development, design and manufacture of ring rolling machines. All products of Anyang Forging Company have passed ISO9001 international quality system certification and CE certification. The model of the ring rolling machine in the picture is D51-500, which is produced for an Indian customer.

Rated 4.6/5 based on 474 customer reviews
Share:
Content

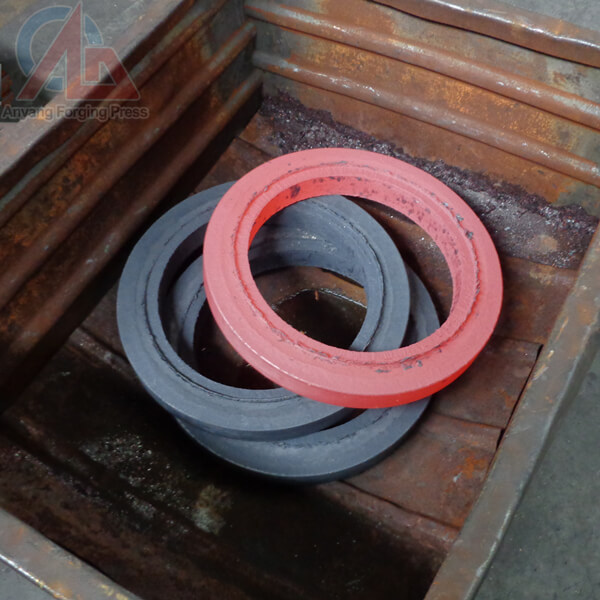

D51 series vertical ring rolling machine has the advantages of small size, compact structure, material saving, energy saving, etc. This ring rolling machine is suitable for hot rolling of various ring blanks. D51 series vertical ring rolling machines are widely used in wind power, aerospace, petrochemical, bearing forging, automotive gear, and flange manufacturing industries.



D51 series Vertical Ring Rolling Machine Technical Parameters:



Item Unit D51- D51- D51- D51- D51- D51- D51- D51- D51- D51-
160E 250D 250E 350D 350E 400E 500E 630E 800E 1000E
Ring size OD mm 200 250 300 350 350 400 500 630 800 1000
Thickness mm 70 50 120 85 200 200 200 200
250
200
350
200    350
Max. productivity Pcs/h 600 500 240 200 120 100 90 80 60 50
Nominal pressure of cylinder kg 11300 9800 19600 15500 30000 30000 32000 32000 38000 38000/ 42000
Slide stroke mm 70 110 110 130 130/250 130/250 130/250 350 350 350
Rolling line speed m/sec 1.64 2.1 1.63 2.2 1.45 1.45 1.5 1.47 1.5 1.5
Main shaft speed mm 92 80 62.3 62 41 40 40 38 38 38
OD of rolling wheel mm 360~380 500~520 680~700 680~700 700~720 700~720 700~720 760~820 760~820
Center height of rolling roller mm 670 875 875 1050 1100 1100 1200 1250 1350 1600
Min. distance between rolling wheel′s center and rolling roller′s center mm 185 265 265 365 365 375 375 385 410 410
Main motor power KW 30 37 55 75 90 90 90 90 110 110
110 132 132
Hydraulic motor power KW 7.5 11 11 15 15 15 15 15 15 15
18 18
Outsize of machine mm 2350× 2890× 3440× 4040× 4595× 4595× 4800× 4800× 4800× 5000×
1700× 1900× 2000× 2000× 2050× 2100× 2200× 2300× 2350× 2400×
2100 2400 2700 3000 3370 3370 3470 3770 3770 3520

****************************************************************************************************************************************************************

We can also provide D53K CNC Ring Rolling Machine.

If you are interested in it, pls contact me.
