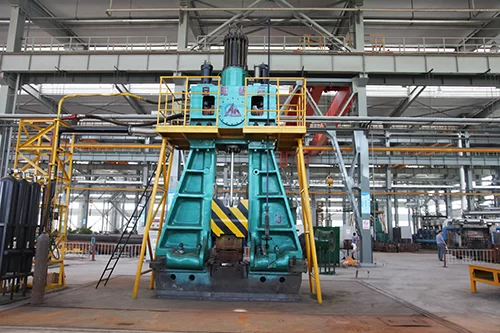

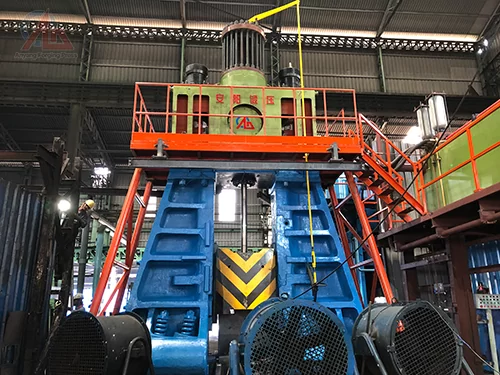

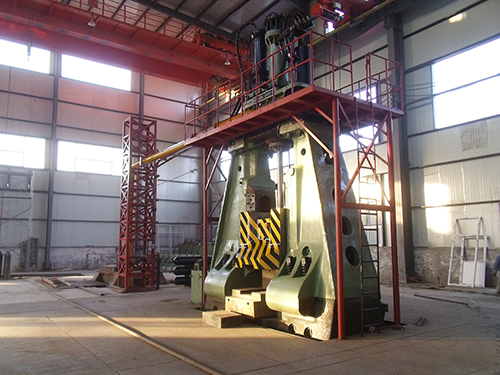

C86Y series closed die forging hammer customers in China

The free forging hammer is a fully hydraulic driven free forging hammer, which has single arm type, arch type, bridge type and other structural forms for free forging.

Fully hydraulic closed die forging hammer is driven by hydraulic oil without nitrogen gas, is mainly applied in many kinds of closed die forgings,such as automobile forgings,tractor forgings,agricultural equipment forgings, oil and gas industry die forgings, electrical power station die forgings and industrial forgings

Hydraulic closed die forging hammers Hydraulic closed die forging hammers include electro-hydraulic closed die forging hammers and fully hydraulic closed die forging hammers, which are mainly used in the mass production of various die forgings such as automobile forgings, tractor forgings, agricultural equipment forgings, etc.

The fully hydraulic closed die forging hammer has large striking force and high speed, the forging die never gets stuck, and there are few failures, and the gate can be suspended at any position. Suitable for the production of various closed-die forgings.

C86Y series hydraulic die forging hammer is fully hydraulic driven and airless. Fully hydraulic die/closed die forging hammer for closed die/die forging.

C86 series electro-hydraulic closed die forging hammers are mainly used for general forgings, such as auto parts forgings, motorcycle parts forgings, hardware forgings, construction forgings, flanges, etc.

What kind of forging hammer can forge large forgings?
This kind of large forging hammer called full hydraulic closed die forging hammer (C86Y) can forge large forgings. The full hydraulic closed-die forging hammer is driven by the hydraulic oil and does not contain nitrogen. It is mainly used in various closed-die forgings, such as agricultural equipment forgings, power station die forgings, oil and gas industry die forgings, automobile forgings, tractor forgings, and other industrial forgings.

Die forging equipment Electro-hydraulic die forging hammer is driven by hydraulic oil and does not contain nitrogen. It is mainly used in automobile forgings, tractor forgings, agricultural equipment forgings, oil and gas industry die forgings, power station die forgings and other closed die forgings.

Fully hydraulic closed die forging hammer is driven by hydraulic oil without nitrogen gas, is mainly applied in many kinds of closed die forgings,such as automobile forgings,tractor forgings,agricultural equipment forgings, oil and gas industry die forgings, electrical power station die forgings

CNC Fully Hydraulic Die Forging Hammer is program-controlled hydraulic die forging hammer, they are widely applied in automobile forgings, motorcycle forgings, hardware forgings, hand tools blank forgings, stainless steel tableware, and aeronautic forgings etc, especially for the precision forging field.

The fully hydraulic closed die forging hammer is driven by the hydraulic oil and does not contain nitrogen. It is mainly used in a variety of closed die forgings, such as forgings in various industries and manufacturing industries such as agricultural equipment, automobiles, tractors, oil and gas industries, and power stations.

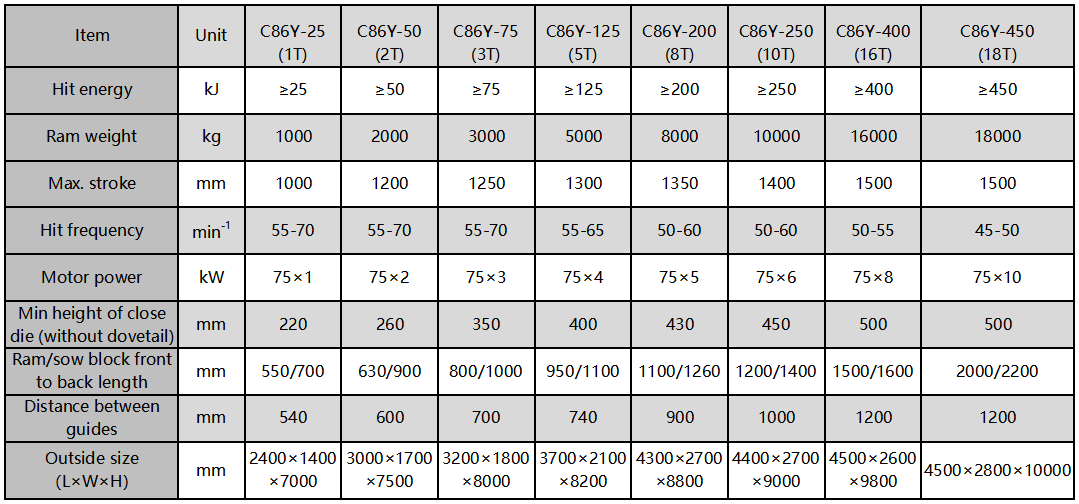

Below energy: 25KJ—450KJ
Ram weight: 1000—18000kg
Max. Stroke： 1000—1500mm
Motor power：75×1—75×10kw
Min height of close die (without dovetail): 220—500mm
Ram/sow block front to back length: 550/700—2000/2200mm
Distance between guides：540—1200mm
Outside size（L×W×H）：2400×1400×7000—4500×2800×10000mm

Full hydraulic die forging hammer refers to a die forging hammer whose strike and return stroke of the hammer head are hydraulically driven. The principle of the system is that the lower chamber of the hammer rod piston is usually connected with high-pressure oil, and the strike and return stroke are realized by controlling the oil pressure of the upper chamber of the piston.

Electro-hydraulic closed die forging hammers are mainly used in the mass production of various die forgings such as automobile forgings, tractor forgings, agricultural equipment forgings, oil and gas industry die forgings, power station die forgings and industrial forgings.

The fully hydraulic closed die forging hammer has large striking force and high speed, the forging die never gets stuck, and there are few failures, and the gate can be suspended at any position. Suitable for the production of various closed-die forgings.
