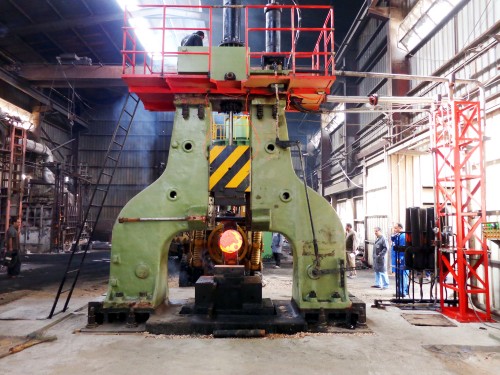

Workers are forging parts with arch free forging electro-hydraulic hammer

Hydraulic free forging hammers include full hydraulic free forging hammers and full hydraulic free forging hammers, both of which are widely accepted by modern free forging plants and are suitable for the production of various free forgings, such as shaft forgings, ring forgings, gear blanks, flanges, etc.

C66Y series fully hydraulic open die forging hammer is fully hydraulic drive open die forging hammer, there single arm type, arch type and bridge type etc structure type. The system principle is the below chamber of hammer rod piston connect the high pressure oil all the time,realize hit through control the upper and below oil pressure of piston of piston.It’s used for open die forging.

Full hydraulic free forging hammer refers to the free forging hammer whose strike and return stroke of the hammer head are hydraulically driven.

Fully Hydraulic Open Die Forging Hammer
Hydraulic C type Open Die Forging Hammer

(C66Y) Fully Hydraulic Forging Hammer is a kind of electric-hydraulic hammer operated by follow-up valve and drove by fully hydraulic driving system.

The electro hydraulic forging hammer can save above 80-90% energy than steam hammer, which is the common understanding of personage of machinery industry. It doesn’t need boiler, removes smoke pollution, this improves worker’s working condition, so that the electro hydraulic forging is a product protecting environment, a replaced product of steam hammer.

The double-arm (arch type) free forging electro-hydraulic hammer converts the potential energy of the hammer head into the kinetic energy of the hammer head, thereby striking the forging and performing work.

The full hydraulic free forging hammer realizes the blow by controlling the upper and lower oil pressure of the piston. The blowing force is large, the speed is fast, and the failure is less.

Electro-hydraulic Open Die Forging Hammer is specially desired for general forging works, which is widely accepted in modern open die forging plants, suitable for producing various open die forgings.

Design and manufacture a pneumatic utility power hammer with outstanding durability and user ergonomics, while making it affordable for hobbyists and professional blacksmiths alike. This also means that expensive foundations are not required.

The forging hammer belongs to a kind of free forging equipment. It is a forging machine that uses the kinetic energy generated by the falling motion of the hammer to continuously hit the workpiece blank to produce plastic deformation.

Anyang Forging Press C66Y series arch free forging electro-hydraulic hammer is supported by two left and right fuselage with arch, as the name suggests, arch electro-hydraulic hammer. It consists of power head, anvil, fuselage, hydraulic station and other parts.

The Fully Hydraulic Open Die Forging Hammer model in this video is C66Y-175KJ 5Ton. There are single arm types, arch types, bridge types, etc structure types with the C66Y series fully hydraulic open die forging hammer.
